Products / Ceramic heating elements / Hot plates
Hot plates
General description:

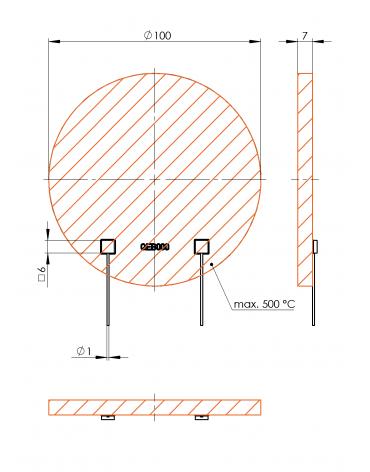

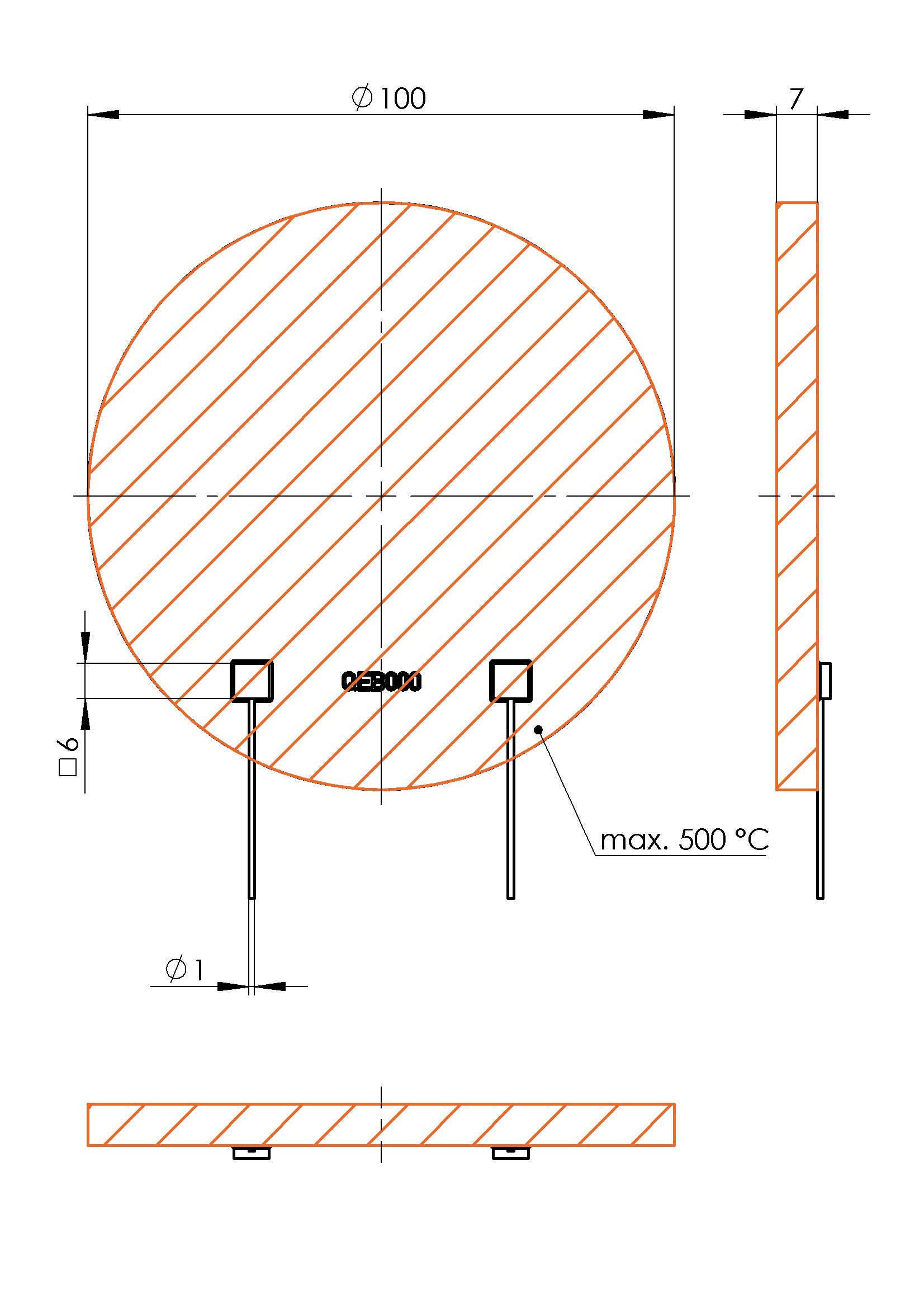

With a diameter of 100 mm, the heating element of the QEB type is suitable for the relatively large-scale heating of round bodies. The low thermal expansion of silicon nitride helps to make sure that even at 500 °C, only a very small thermal distortion occurs in the heating element and the heat transfer area remains smooth.
Basic values:
| Parameter | Value |
|---|---|
| Dimensions | Ø 100 x 7.0 mm |
| Heated area | Ø 100 x 7.0 mm |
| Tmax | 500 °C |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. FLR 100 128 Resistance @ 20 °C 50 Ω ±25 % Nominal voltage 230 V Nominal power @ 20 °C 1 058 W*
